The usage of material is in 100°C ,alkalinity ≧(20%NaOH) and other industry which request large tensile strength and large wear resistance

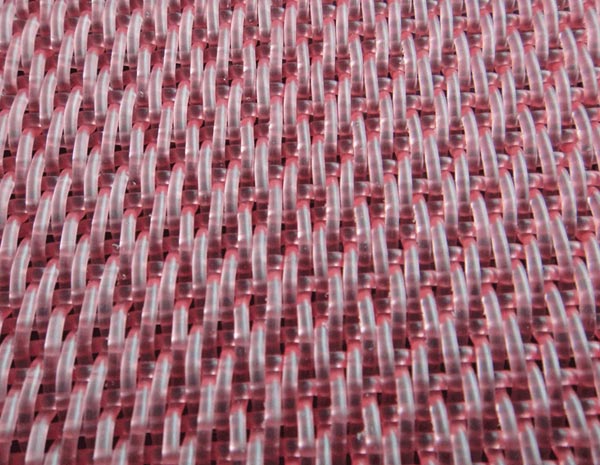

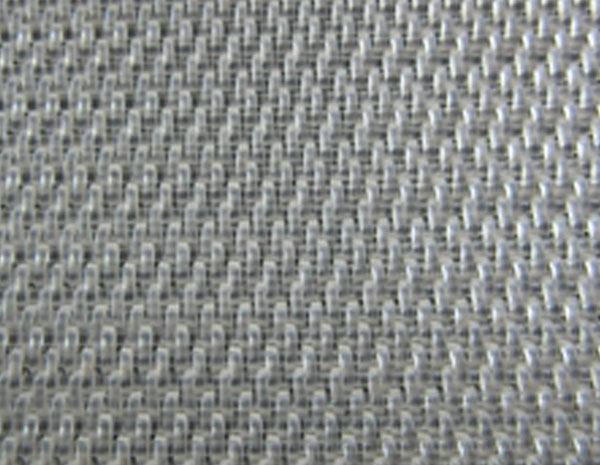

Polyester anti-alkali fabric: The usage of material is in 100°C ,alkalinity ≧(20%NaOH) and other industry which request large tensile strength and large wear resistance.
 |  |
 |  |

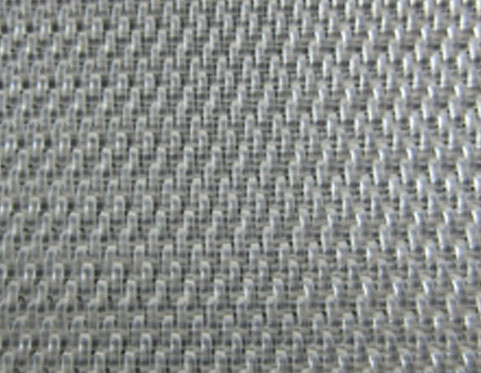

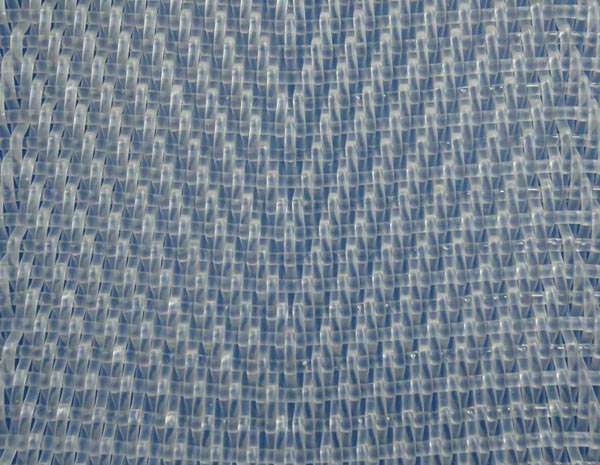

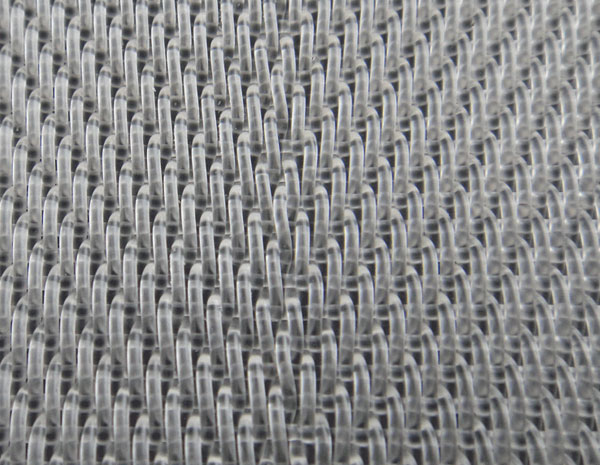

15905 | 061204 |
 |  |
 |  |

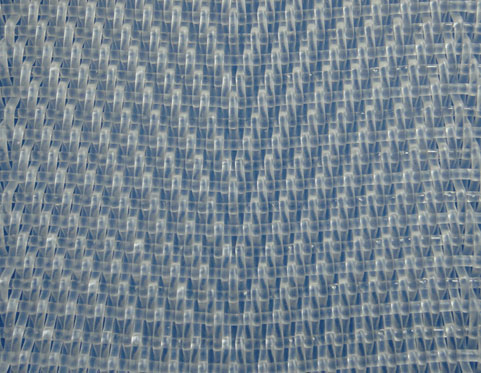

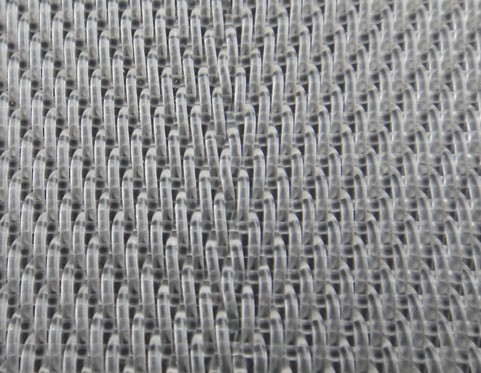

121104 | 121204 |
| Model of Fabrics | Wire diameter (mm) | Density (wire/cm) | Strength(N/cm) | Permeability (m³/㎡h) | ||
| Warp | Weft | Warp | Weft | Area of the surface | ||
| 16903 | 0.70 | 0.90 | 16.3 | 5.0 | ≥2200 | 7520 |
| 061204 | 1.20 | 1.20 | 7.0 | 4.3 | ≥2000 | 6896 |
| 121204 | 1.05 | 1.20 | 12.6 | 7.4 | ≥2100 | 12050 |
| 15905 | 0.90 | 0.90 | 15.3 | 5 | ≥4500 | 6800 |
| 121104 | 0.90 | 1.10 | 12.8 | 4.0 | ≥3600 | 9600 |
