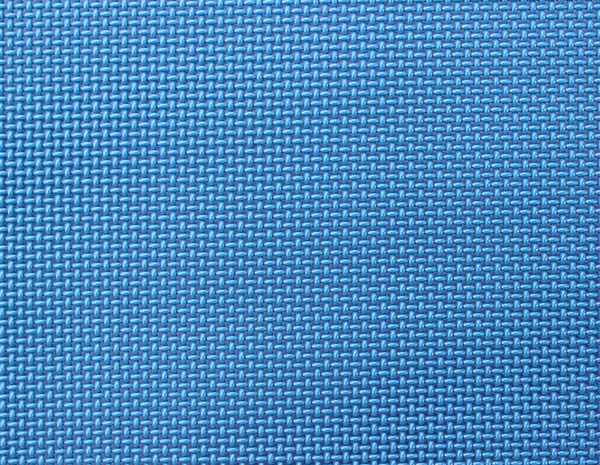

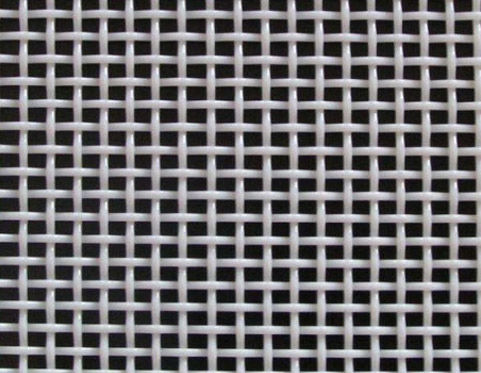

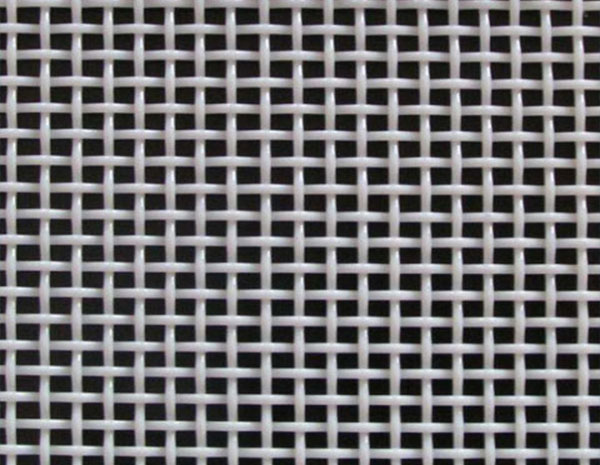

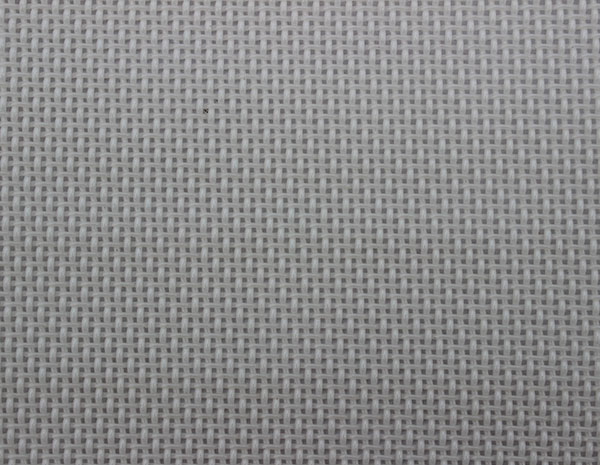

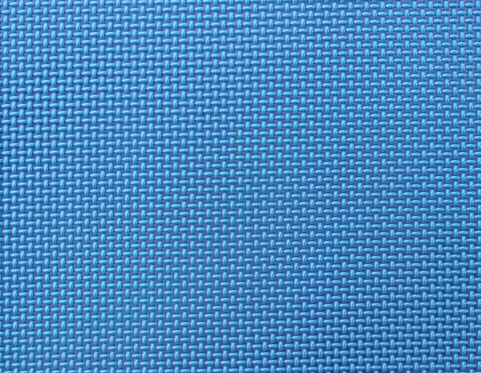

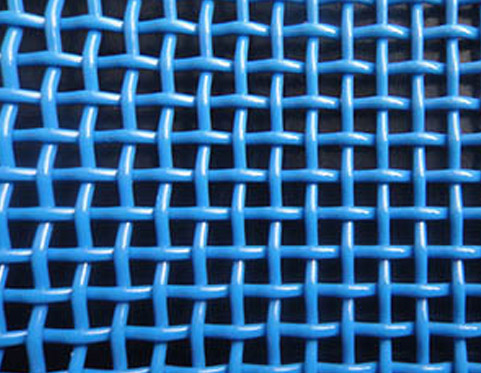

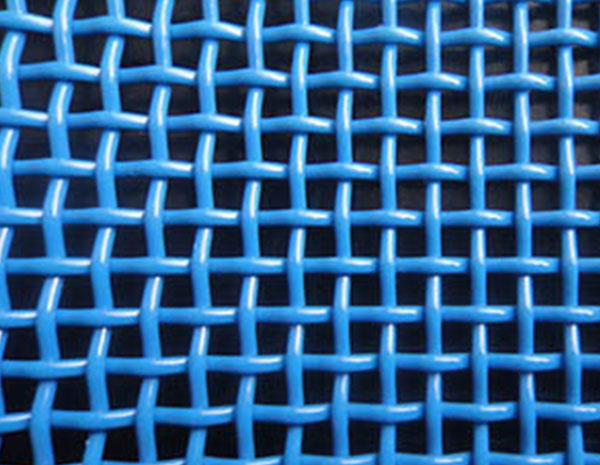

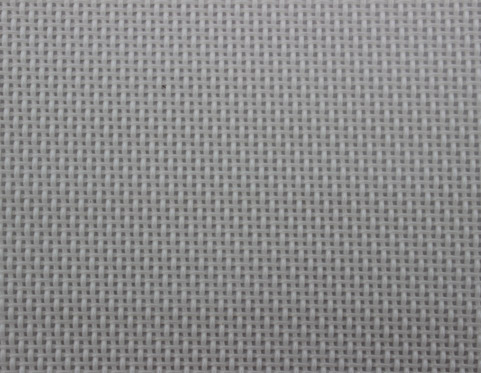

Polyester Plain Fabrics (also called linear screen cloth) can be divided into 2-shed, 3-shed according to the weaving type, etc.
None
Polyester Plain Fabrics (also called linear screen cloth) can be divided into 2-shed, 3-shed according to the weaving type, etc.
The 2-shed and 3-shed Polyester Plain Fabrics are mainly used in special lines of paper making industry, such as paper pulps making, packing and liner cardboard making, etc. Also could be used in high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.
Product Performance:
Polyester plain fabric use high strength polyester monofilament and it has good wear resistance
All kinds of joint is suitable included endless joint
Fabric will be run stably because good heatsetting
Fabric have a accurate open area and aperture is uniform
 |  |
 |  |

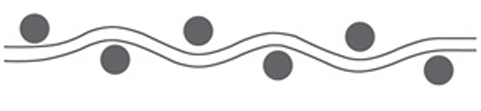

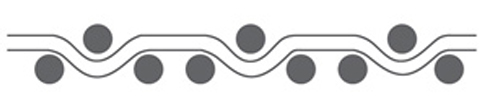

Polyester plain fabric for 2-shed | Polyester plain fabric for 3-shed |
 |  |
Polyester plain fabric | Polyester plain fabric |
| Model of Fabrics | Wire diameter (mm) | Density (wire/centimeter) | Strength(N/cm) | Permeability (m³/㎡h) | ||
| Warp | Weft | Warp | Weft | Area of the surface | ||
| 03902 | 0.90 | 0.90 | 3.90 | 3.65 | ≥1650 | 20000 |
| 05802 | 0.80 | 0.80 | 5.1 | 5.3 | ≥1700 | 15840 |
| 06802 | 0.80 | 0.80 | 6.6 | 6.5 | ≥1650 | 11600 |
| 06702 | 0.70 | 0.70 | 7.0 | 7.0 | ≥1800 | 11000 |
| 07802 | 0.80 | 0.80 | 7.8 | 7.0 | ≥1800 | 5920 |
| 09502 | 0.50 | 0.50 | 9.7 | 10.3 | ≥1850 | 10100 |
| 12502 | 0.50 | 0.50 | 13.5 | 8.5 | ≥1900 | 6500 |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | ≥1900 | 15570 |
| 08603 | 0.50 | 0.60 | 9.4 | 9 | ≥1950 | 9000 |
| 07903 | 0.80 | 0.90 | 7.6 | 6.5 | ≥1950 | 9184 |
| 06803 | 0.70 | 0.80 | 7.0 | 5.5 | ≥1600 | 16000 |
| 031002 | 1.0 | 1.0 | 3.2 | 3.25 | ≥1600 | 25600 |
