Polyester Spiral Dryer Fabrics

Polyester Spiral Dryer Fabrics. It is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry. Also could be used as conveyor belt and the laminating machine matching belt.

Share:
Detail description

Polyester Spiral Dryer Fabrics. It is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry. Also could be used as conveyor belt and the laminating machine matching belt.


Regarding paper making, It is suitable for drying packing paper, cultural paper, board paper and pulp board etc.


Polyester Spiral Dryer Fabrics have the advantage of larger air permeability, flat surface, good strength, long working time and joining or not arbitrarily.


Polyester Spiral Dryer Fabrics which in special material have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.


Polyester Spiral Dryer FabricsPolyester Spiral Dryer Fabrics
Polyester Spiral Dryer FabricsPolyester Spiral Dryer Fabrics

                        Polyester spiral dryer fabric

                        Polyester spiral dryer fabric

Polyester Spiral Dryer FabricsPolyester Spiral Dryer Fabrics

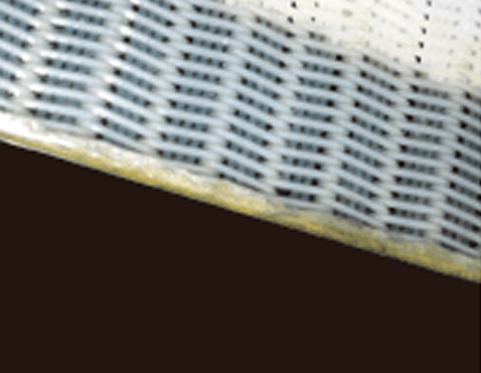

                           Edge Processing 1                             Edge Processing 2



Technical Datas
 Types of Spiral Dryer Fabric Model of Fabrics Wire diameter (mm)Strength(N/cm)   Permeability (m³/㎡h)


 Spiral loop yarn Connection yarnArea of the surface
Coarse Loop LW901100.91.1 ≥230020000
Large Loop LW40800.91.1 ≥230019000
Medium Loop LW38680.70.9 ≥200017000
Small Loop LW32520.50.7 ≥180015000
